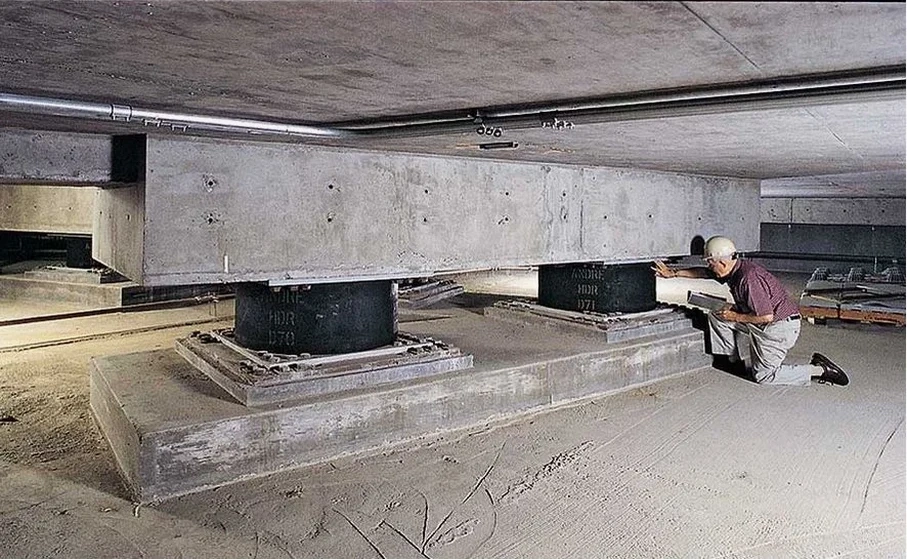

We still see projects in Tucson where the structural engineer assumes a fixed-base model without even checking if isolation is viable. That assumption costs money later. The Santa Catalina foothills and downtown both sit inside the Intermountain Seismic Belt, but the basin sediments under Tucson amplify motion differently than the bedrock at the edge of the Rincon Mountains. Base isolation seismic design separates the superstructure from that amplification. We run nonlinear time-history analyses with ground motions matched to the USGS hazard for Pima County, then size lead-rubber or friction pendulum isolators so the fundamental period shifts well past 2 seconds. A proper liquefaction assessment tells us if the bearing layer can even take the isolator pedestals, and we often pair that with deep excavation support when the isolation pit goes below the water table near the Rillito.
You don't isolate a building for the small quake. You isolate it so the MCE-level event leaves the structure elastic and the contents upright.
Quick answers
What does base isolation seismic design cost for a Tucson project?
For a mid-rise building in Tucson, the engineering fee for complete base isolation seismic design typically ranges from US$4,100 to US$7,320, depending on the complexity of the ground motion analysis and the number of isolator types being evaluated. This covers the feasibility study, nonlinear time-history modeling, isolator specification, and construction-phase testing protocol development.
Does ASCE 7 require nonlinear response-history analysis for isolated structures?
Yes. ASCE 7-16 Chapter 17 requires nonlinear response-history analysis for isolated structures on Site Class D or softer soils, which covers most Tucson basin sites. The analysis must use at least 11 ground motion pairs scaled to the MCE_R spectrum, and both upper-bound and lower-bound isolator properties must be considered to envelope aging, temperature, and manufacturing tolerance effects.
How does Tucson basin geology affect isolator displacement demand?
The deep basin sediments under Tucson, reaching over 5,000 feet in the central trough, amplify long-period ground motion. This can increase isolator displacement demands by 15–25% compared to a rock site for the same earthquake scenario. We run site-specific basin amplification studies using shear-wave velocity profiles from local borehole data to avoid underestimating the MCE_R displacement.
Can existing buildings in Tucson be retrofitted with base isolation?
Yes, but the logistics are intensive. The building must be temporarily supported while the existing columns are cut and isolators are inserted. In Tucson's older downtown masonry buildings, we typically combine an isolation retrofit with a grouting program to stabilize the foundation soils before cutting columns, and we sequence the work in phases so the building remains partially occupied.
What type of isolator works best in Tucson's climate?
Both lead-rubber and friction pendulum isolators perform well in Tucson's dry heat, but we pay close attention to the upper-bound property analysis for lead-rubber bearings because the rubber stiffness increases at the low end of the temperature range during winter nights. Friction pendulum systems are less temperature-sensitive but require careful moat detailing to keep the sliding surface free of desert dust and fine sand.
